EV300 Series: Multifunction Power And Energy Meters
Multifunction Power And Energy Meters
EV300 Series

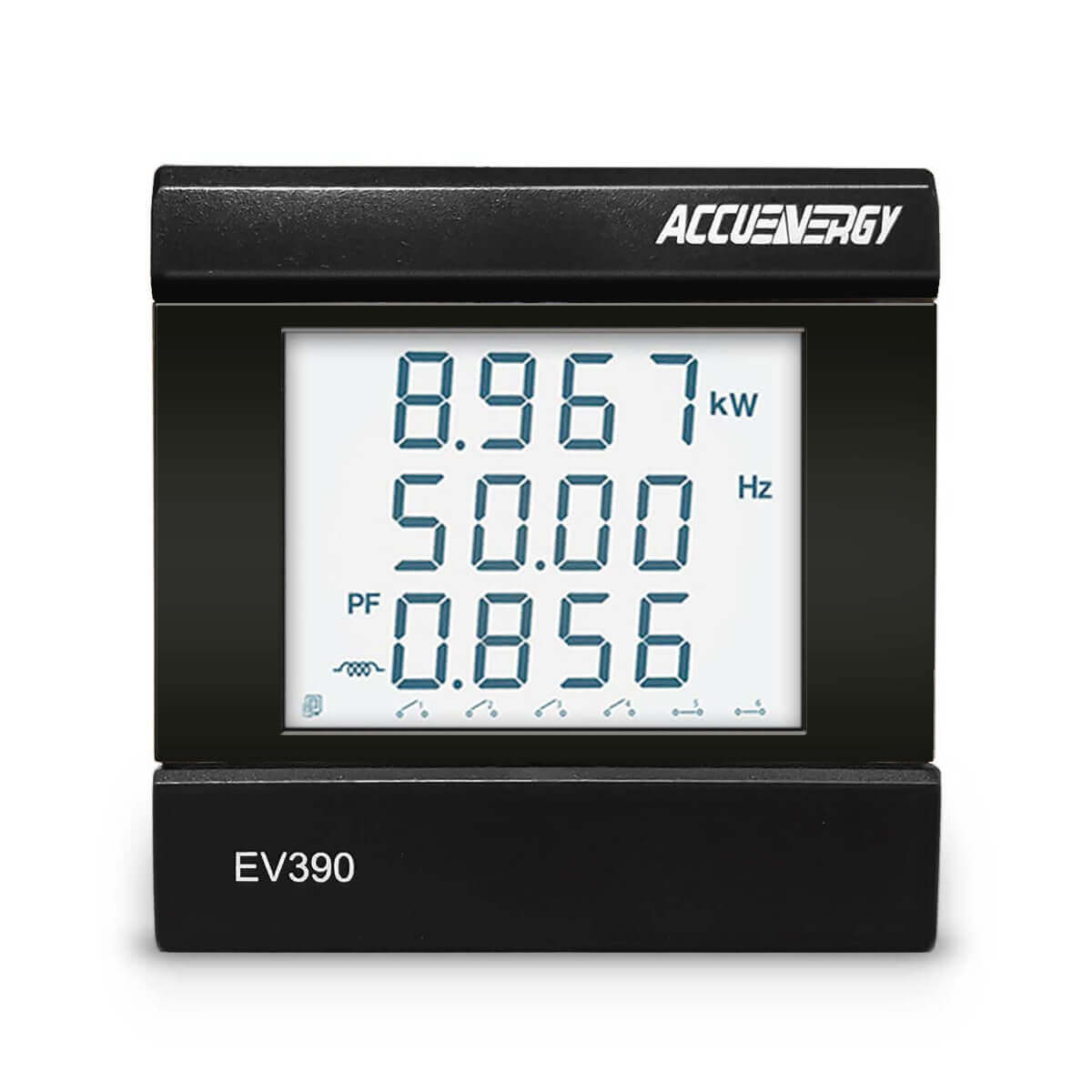

Three-phase power and energy meters that provides the most affordable metering solution with reliable power metering features for voltage, current, power and bi-directional energy.
- Utility Revenue Grade Accuracy IEC 62053-22 0.5s Class / ANSI C12.20 0.5 Class
- Bi-directional Energy Metering
- Utility Revenue Grade Accuracy
- Field Configurable 5A/1A CT Input
- Compatible with both 50Hz and 60Hz system
- RS485 port Built-in with Modbus-RTU
- Standard Panel Mount 96mm DIN- Direct Retrofit
- Switch Status Monitoring and Controlling
- Energy Pulse Output
- 4-20mA Analog Transducer Output
- Over/Under Limit Alarm-triggered Relay Output
- Lowest Cost in the Same Class Guaranteed
EV300 Series Models
Functional comparison of the EV300 series models.
| Function | Parameters | EV387 | EV390 |
|---|---|---|---|
| Metering | Voltage (V) | ||
| Current (Amp) | |||
| Power (kW) | |||
| Reactive Power (kVar) | |||
| Apparent Power (kVA) | |||
| Power Factor (PF) | |||
| Frequency (Hz) | |||
| Energy (Import/Export/Total/Net) | |||
| Reactive Energy (Import/Export/Total/Net) | |||
| Communications | Modbus-RTU via RS485 | ||
| Display | LCD Display | ||
| Digital Input | 2 Digital Inputs | ||
| Digital Input | 4 Digital Inputs | Optional I/O Function | |
| Relay Output | 2 Relay Outputs | ||
| Digital Output | 2 Digital Outputs | ||
| Analog Output | 2 Analog Outputs (4-20mA) | ||
| Auxiliary Power | 24Vdc | ||
EV387 | |
|---|---|
| Metering: Voltage (V) | |
| Metering: Current (Amp) | |
| Metering: Power (kW) | |
| Metering: Reactive Power (kVar) | |
| Apparent Power (kVA) | |
| Power Factor (PF) | |
| Frequency (Hz) | |
| Energy (Import/Export/Total/Net) | |
| Reactive Energy (Import/Export/Total/Net) | |
| Communications: Modbus-RTU via RS485 | |
| Display: LCD Display | |
| Digital Input: 2 Digital Inputs | |
| Digital Input: 4 Digital Inputs | Optional I/O Function, Learn more |
| Relay Output: 2 Relay Outputs | |
| Digital Output: 2 Digital Outputs | |
| Analog Output: 2 Analog Outputs (4-20mA) | |
| Auxilary Power: 24Vdc | |
EV390 | |
|---|---|
| Metering: Voltage (V) | |
| Metering: Current (Amp) | |
| Metering: Power (kW) | |
| Metering: Reactive Power (kVar) | |
| Apparent Power (kVA) | |
| Power Factor (PF) | |
| Frequency (Hz) | |
| Energy (Import/Export/Total/Net) | |
| Reactive Energy (Import/Export/Total/Net) | |
| Communications: Modbus-RTU via RS485 | |
| Display: LCD Display | |
| Digital Input: 2 Digital Inputs | |
| Digital Input: 4 Digital Inputs | Optional I/O Function, Learn more |
| Relay Output: 2 Relay Outputs | |
| Digital Output: 2 Digital Outputs | |
| Analog Output: 2 Analog Outputs (4-20mA) | |
| Auxilary Power: 24Vdc | |
Metering Features
EV300 Series power meter offers robust metering capabilities at a great value
Universal Rating Meter
Voltage: Measuring from 10V to 400Vac direction that works with any voltage rating system. Potential Transformer ratio configuration supported.
Current: 5A and 1A CT input field-configurable that suits any industrial current transformer.
Frequency: Automatically adapt to 50Hz and 60Hz system without compromising the accuracy, which simplify design and eliminate international OEM frequency issues.

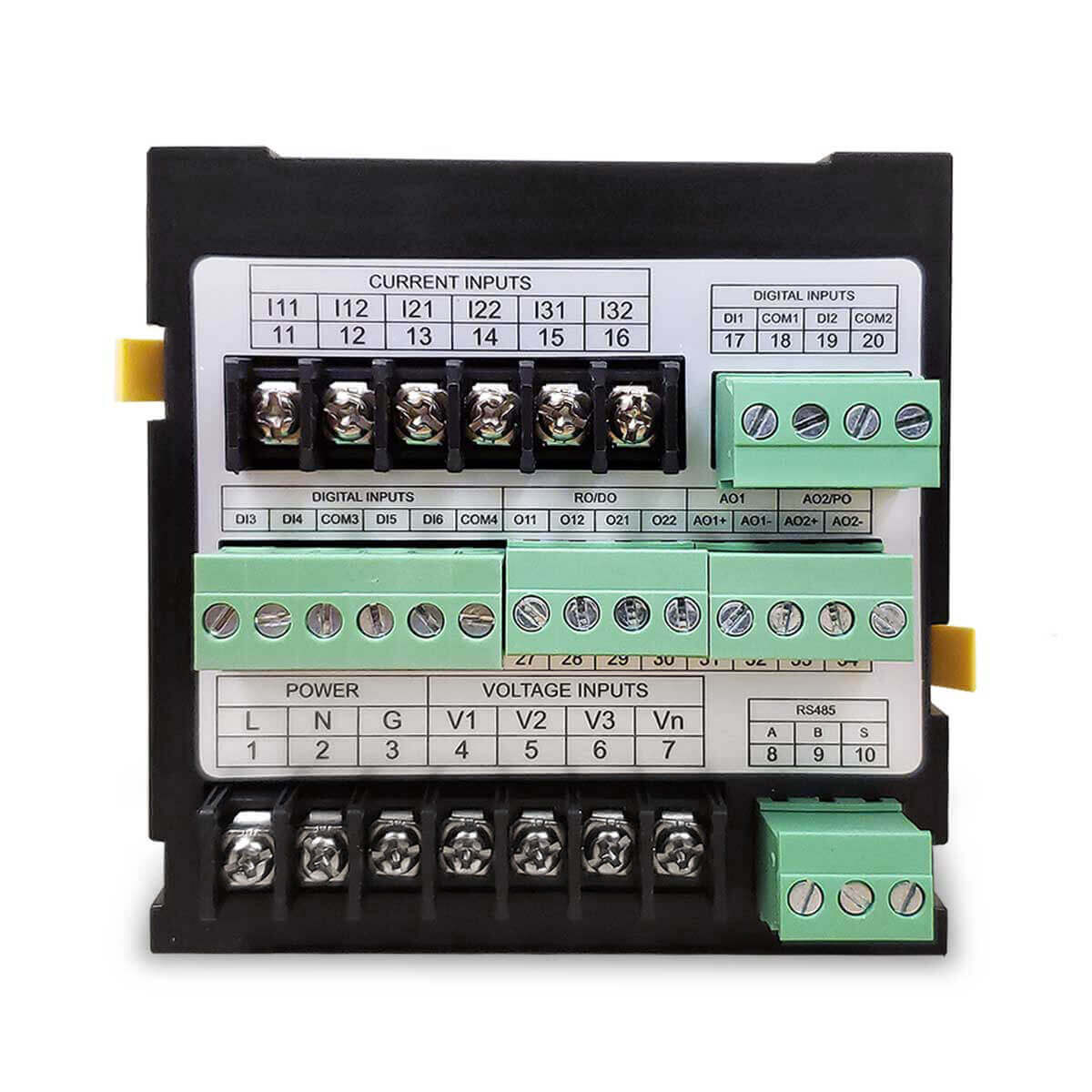

Multiple I/O Built-in
Digital Input: Monitor switch status, directly display on front LCD display and remotely accessed by communication.
Built-in Power Supply: 24Vdc provides direct power supply to digital input. It reduce the cost, complication and space limitation of additional low voltage power supply in panel.
Digital Output: Pulse output provides energy data to any data acquisition server.
Analog Output: 4-20mA transducer type analog output can be interfaced with any PLC directly.
Relay Output: Over/under limit alarm triggered relay output to control load on/off for load shedding.
I/O Options for the EV300 Series
The EV300 series meter offers a wide variety of Input/Output options.
E0 | E1 | E2 | E3 | E4 | |
|---|---|---|---|---|---|
| Digital Input | 2 | 6 | 6 | 6 | 6 |
| Digital Output (Pulse) | 2 | 2 | |||
| Analog Output (4-20mA) | 2 | 2 | |||
| Relay Output | 2 | 2 | |||
| Power Supply for DI | 1 | 1 |
E0 | |
|---|---|
| Digital Input | 2 |
| Digital Output (Pulse) | |
| Analog Output (4-20mA) | |
| Relay Output | |
| Power Supply for DI | |
E1 | |
|---|---|
| Digital Input | 6 |
| Digital Output (Pulse) | |
| Analog Output (4-20mA) | |
| Relay Output | 2 |
| Power Supply for DI | 1 |
E2 | |
|---|---|
| Digital Input | 6 |
| Digital Output (Pulse) | 2 |
| Analog Output (4-20mA) | |
| Relay Output | |
| Power Supply for DI | 1 |
E3 | |
|---|---|
| Digital Input | 6 |
| Digital Output (Pulse) | 2 |
| Analog Output (4-20mA) | 2 |
| Relay Output | |
| Power Supply for DI | |
E4 | |
|---|---|
| Digital Input | 6 |
| Digital Output (Pulse) | |
| Analog Output (4-20mA) | 2 |
| Relay Output | 2 |
| Power Supply for DI | |
EV300 Applications
The EV300 is specially designed for these applications.
