Digital I/O, Analog I/O and Relay Communication Modules
Digital I/O, Analog I/O and Relay Communication Modules

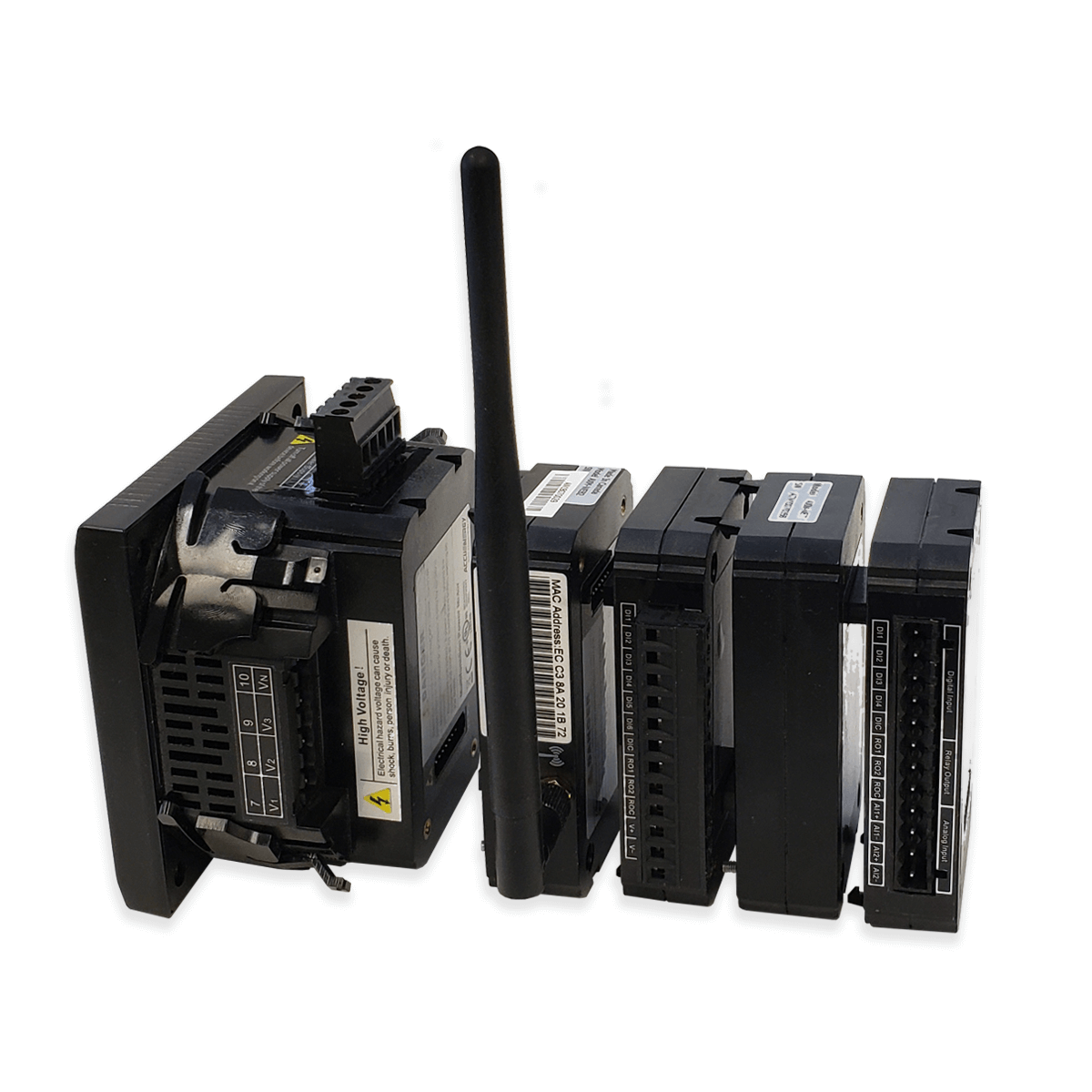

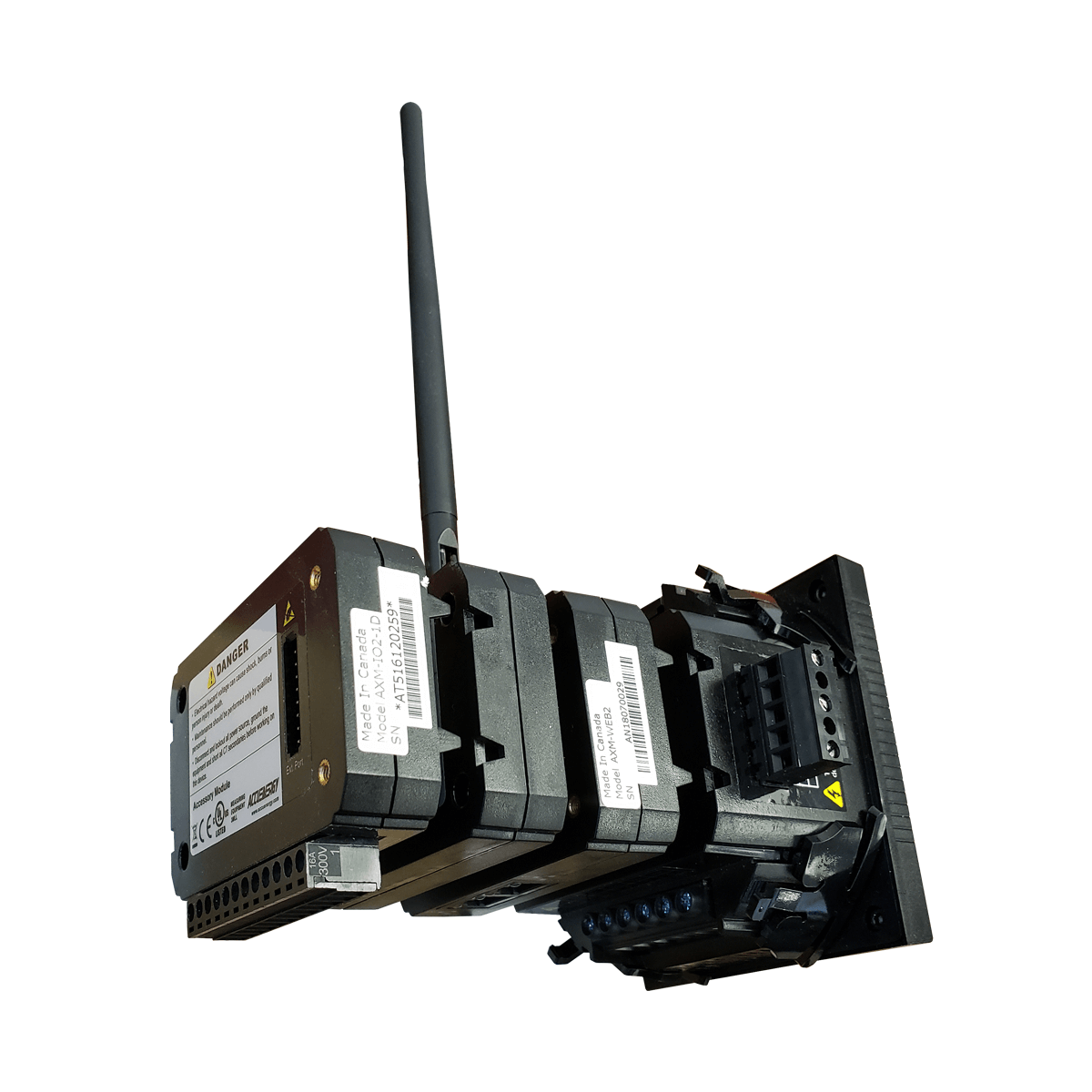

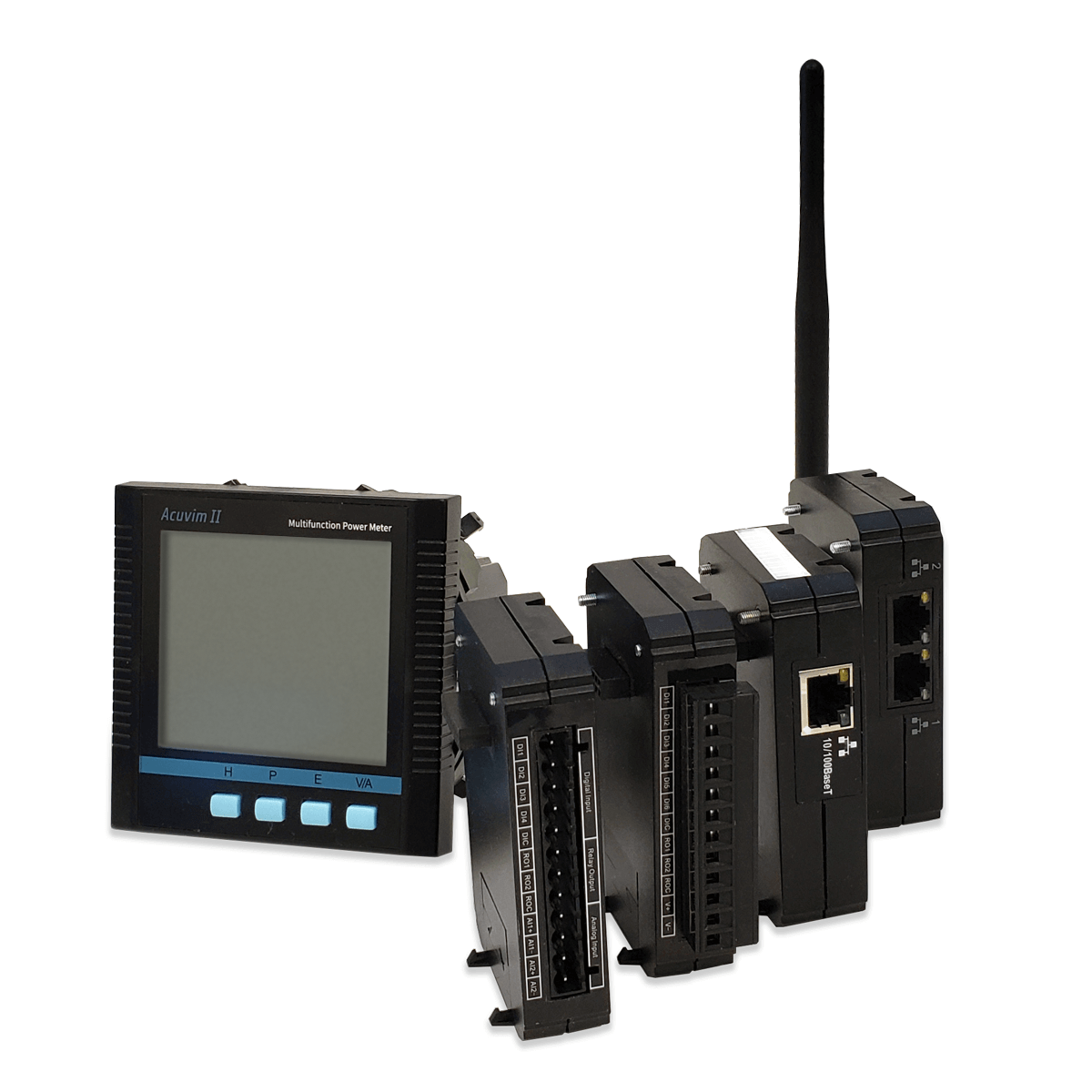

Power Meter Expansion Modules
Acuvim II Communication Modules

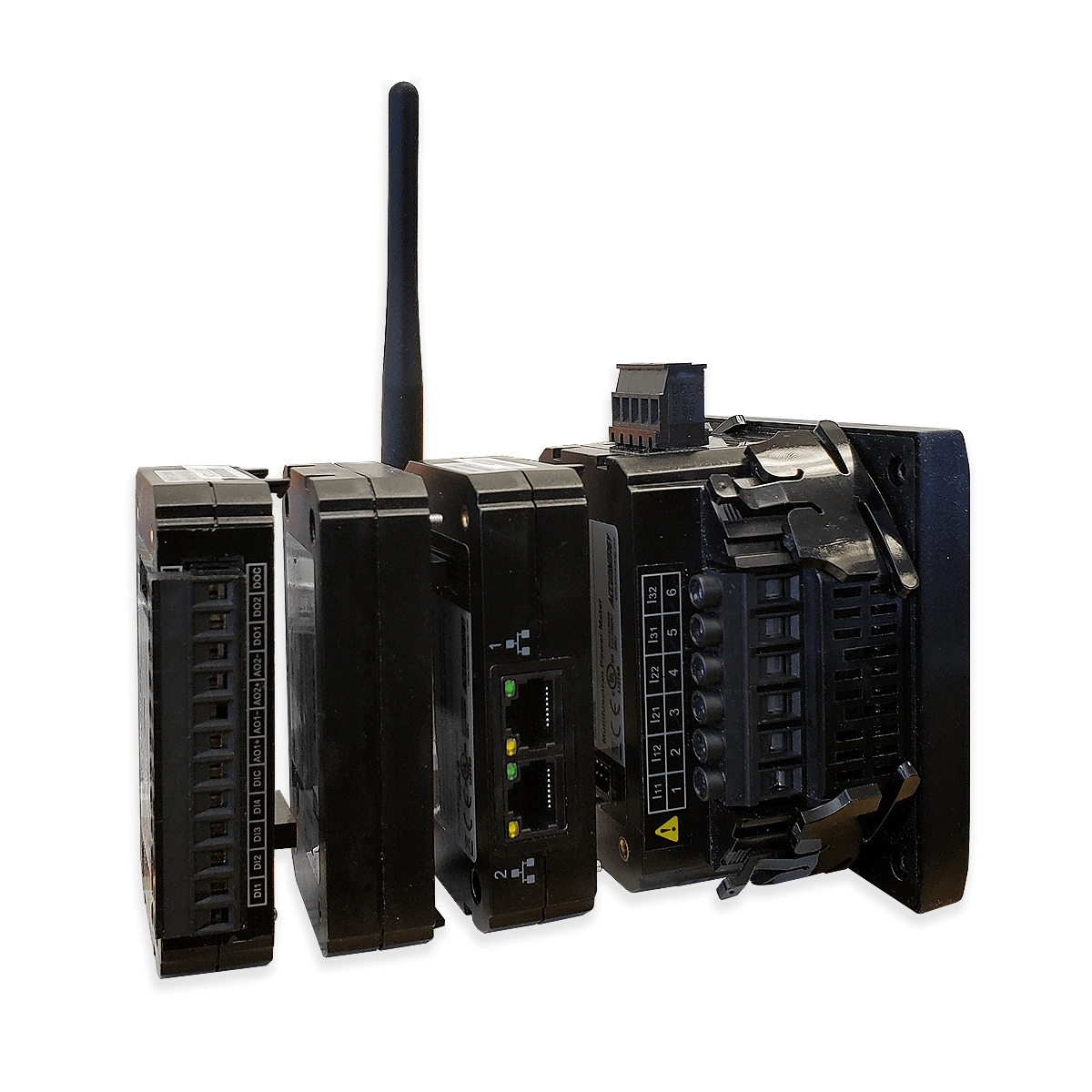

Snap-on expansion modules available for the Acuvim II line of high performance power and energy meters.
Standard Model | AXM | AXM | AXM | AXM | AXM | AXM | AXM | AXM | |
|---|---|---|---|---|---|---|---|---|---|
| Order Online | Order Online | Order Online | Order Online | Order Online | |||||
| MODBUS-RTU | |||||||||
| DNP 3.0 Over IP | |||||||||
| IEC 61850 | |||||||||
| MODBUS-TCP | |||||||||
| HTTP/HTTPs Webserver | |||||||||
| SMTP Email | |||||||||
| SNMP V3 | |||||||||
| HTTP/HTTPs Push | |||||||||
| FTP Post | |||||||||
| sFTP Server | |||||||||
| Datalogging | 8GB | 8GB | 4GB | ||||||
| BACnet-MS/TP | |||||||||
| BACnet-IP | |||||||||
| PROFIBUS | |||||||||
| WiFi | |||||||||
| Dual RJ45 Ports | |||||||||
| Fiber Optics LC | |||||||||
| RF |
Standard Model | |
|---|---|
| MODBUS-RTU | |
AXM WEB2 FOLC | |
|---|---|
| DNP 3.0 Over IP | |
| IEC 61850 | |
| MODBUS-TCP | |
| HTTP/HTTPs Webserver | |
| SMTP Email | |
| SNMP V3 | |
| HTTP/HTTPs Push | |
| FTP Post | |
| sFTP Server | |
| Datalogging | 8 GB |
| BACnet-IP | |
| WiFi | |
| Dual RJ45 Ports | |
| Fiber Optics LC | |
AXM WEB2 | |
|---|---|
| DNP 3.0 Over IP | |
| IEC 61850 | |
| MODBUS-TCP | |
| HTTP/HTTPs Webserver | |
| SMTP Email | |
| SNMP V3 | |
| HTTP/HTTPs Push | |
| FTP Post | |
| sFTP Server | |
| Datalogging | 8 GB |
| BACnet-IP | |
| WiFi | |
| Dual RJ45 Ports | |
AXM WEB | |
|---|---|
| DNP 3.0 Over IP | |
| MODBUS-TCP | |
| HTTP/HTTPs Webserver | |
| SMTP Email | |
| SNMP V3 | |
| HTTP/HTTPs Push | |
| FTP Post | |
| sFTP Server | |
| Datalogging | 4 GB |
AXM BMS | |
|---|---|
| BACnet-MS/TP | |
AXM BIP | |
|---|---|
| HTTP/HTTPs Webserver | |
| BACnet-IP | |
AXM PROFI | |
|---|---|
| PROFIBUS | |
AXM RS485 | |
|---|---|
| MODBUS RTU | |
AXM MESH | |
|---|---|
| RF | |
AXM-IO1
6x digital inputs
24Vdc power for digital inputs
2x relay outputs
AXM-IO2
4x digital inputs
2x digital outputs
2x analog outputs
AXM-IO3
4x digital inputs
2x relay outputs
2x analog inputs
Acuvim L Communication Modules
Plug-in expansion modules available for the Acuvim L line of power and energy meters
LX-1 | LX-2 | LX-3 | LX-4 | |
|---|---|---|---|---|
| Digital Input (DI) | 4 | 4 | 4 | |
| Digital Output (DO) | 2 | 2 | 2 | |
| RS485 Port | 1 | |||
| Profibus Port | 1 | 1 |
LX-1 | |
|---|---|
| Digital Input (DI) | 4 |
| Digital Output (DO) | 2 |
LX-2 | |
|---|---|
| Digital Input (DI) | 4 |
| Digital Output (DO) | 2 |
| RS485 Port | 1 |
LX-3 | |
|---|---|
| Profibus Port | 1 |
LX-4 | |
|---|---|
| Digital Input (DI) | 4 |
| Digital Output (DO) | 2 |
| Profibus Port | 1 |
AcuDC Communication Modules
Plug-in expansion modules available for the AcuDC line of DC power and energy meters are ordered with the meters
Digital Input (DI) | Analog Output (AO) | Analog Input (AI) | Relay Output (RO) | Digital Output (DO) | Hall Effect Sensor Power Supply | |
|---|---|---|---|---|---|---|
| X1 | 2 | 2 | ||||
| X2 | 2 | 2 | ||||
| X3 | 2 | 2 | ||||
| X4 | 2 | 2 | ||||
| X5 | 2 | +/-15Vdc | ||||
| X6 | 2 | 2 | +/-15Vdc | |||
| X7 | 2 | 2 | +/-15Vdc |
Digital Input (DI) | |
|---|---|
| X1 | 2 |
| X2 | 2 |
| X3 | 2 |
| X4 | 2 |
| X5 | 2 |
| X6 | 2 |
| X7 | 2 |
Analog Input (AO) | |
|---|---|
| X1 | 2 |
| X2 | 2 |
Relay Input (RO) | |
|---|---|
| X3 | 2 |
Digital Input (DO) | |
|---|---|
| X4 | 2 |
Hall Effect Sensor Power Supply | |
|---|---|
| X5 | +/-15Vdc |
| X6 | +/-15Vdc |
| X6 | +/-15Vdc |
